QJ-60 unmanned helicopter

QJ-60 unmanned helicopter

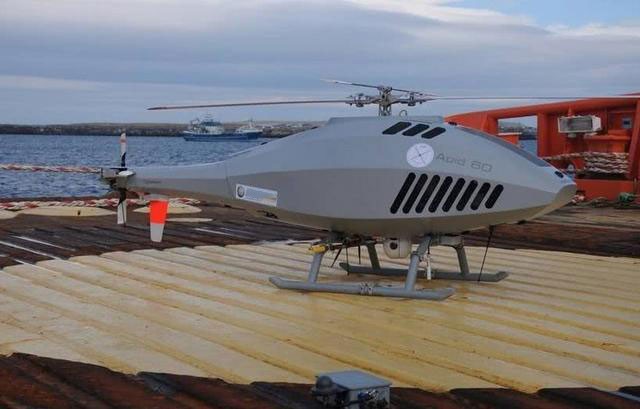

The QJ-60 is a small unmanned helicopter with full autonomous flight, takeoff, and landing capabilities,
No need for real-time control and navigation by ground personnel. When the QJ-60 helicopter is equipped with multiple sensors and establishes data links with ground control stations, it can perform various tasks at sea and on land, such as aerial photography, border patrol, search, monitoring, etc.
This helicopter is a fully automatic, multi-purpose vertical takeoff and landing unmanned aerial vehicle (VTOL UAV). The aircraft is equipped with navigation and stabilization devices, which enable autonomous mission management when establishing a data link with the ground control station (GCS). The QJ-60 system consists of three parts: QJ-60 UAV, ground control station, and optional load system.
This helicopter can carry various onboard equipment, such as aerial cameras with stable platforms, infrared (IR) sensors, laser scanners, multiple antennas, and other onboard devices. The Ground Control Station (GCS) is a workstation for drone operators, who can control the drone and its onboard equipment through the GCS. The data obtained by the Ground Control Station (GCS) can be displayed or recorded according to user needs.
The QJ-60 system can be used for intelligent monitoring and reconnaissance, applied in enemy environments, poor visibility, or other special situations where it is inconvenient for humans to directly detect. The QJ-60 is easy to operate, safe and reliable, and has excellent economic performance.
The QJ-60 helicopter has high positional accuracy performance when hovering in the air and autonomously navigating between pre-set two points, and the flight between the two points can be controlled through the user interface. The QJ-60 can also be operated semi manually, with the operator providing navigation control for the helicopter through a joystick. The flight control system can achieve automatic attitude stability in all operating modes, ensuring that the helicopter maintains a safe flight attitude.
The QJ-60 system requires training for operators. Except for special mobility methods such as takeoff and landing and equipment recovery, the QJ-60 helicopter can be conveniently transported by box trucks or trailers.
