Multi functional and multi-purpose unmanned aerial vehicle

Multi functional and multi-purpose unmanned aerial vehicle

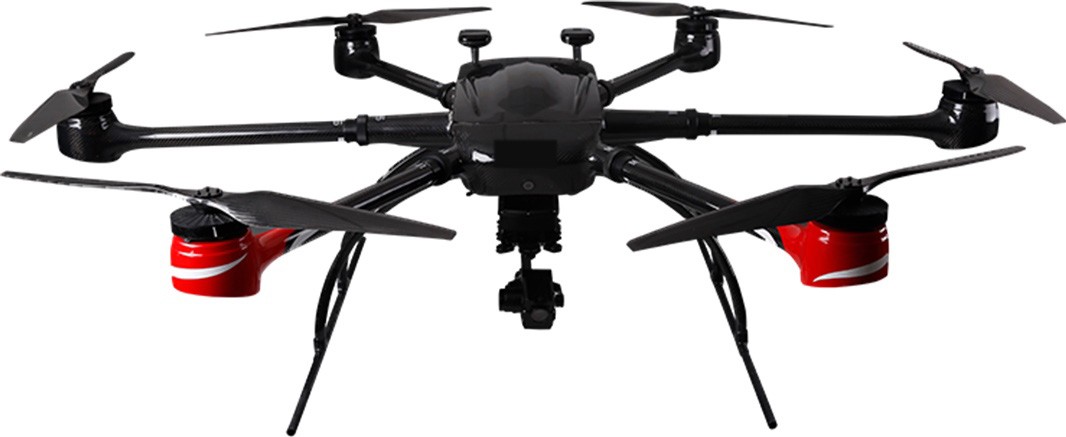

The QJ-X6L hexacopter unmanned aerial vehicle is a very mature multifunctional and multi-purpose unmanned aerial vehicle. It is the first unmanned aerial vehicle in China to adopt the all carbon fiber integrated molding process with upturned arms. It has good wind resistance and rain resistance, adopts a tool free quick disassembly structure, supports manual precise control and autonomous flight on the route, and has a long flight time.

The QJ-X6L can be equipped with aerial photography, industrial thermal imaging, shouting, throwing, surveying, gas detection, automatic water intake, lighting, rocket launchers, and light and small communication pods, with typical multi functional characteristics of one aircraft. This model has strong environmental adaptability and can work in high-altitude areas above 5000 meters. It can be used normally in harsh environments such as high humidity, high heat, high corrosion, and high salt. It has very reliable safety performance and has a broken propeller protection function.

Maximum wingspan
2570±10mm
Symmetrical motor wheelbase
1765±10mm
Empty takeoff weight
22.5±0.2kg
Maximum takeoff weight
37.5kg
Task load capacity
≤15kg
Idle hover time
≥ 75min (altitude below 1000m, 25 ℃)
Suspension time of 15kg load
≥ 30 minutes (altitude below 1000m, 25 ℃)
Maximum flight speed
18m/s
Maximum climbing speed
4m/s
Maximum descent speed
3m/s
Relative climbing altitude
4000m (plain)
Maximum working altitude
5000m (altitude, relative climb 1500m)
wind resistance
Level 7 wind
Maximum control distance of remote control
≥7km
Maximum control distance of ground station
≥10km
Dimensions of arm packaging box
1125*470*455±10mm
Dimensions of the body packaging box
1085*690*470±10mm
Empty weight
10.5±0.2kg
