QJ-25D Vertical Takeoff and Landing Fixed Wing UAV Video Surveillance System

QJ-25D Vertical Takeoff and Landing Fixed Wing UAV Video Surveillance System

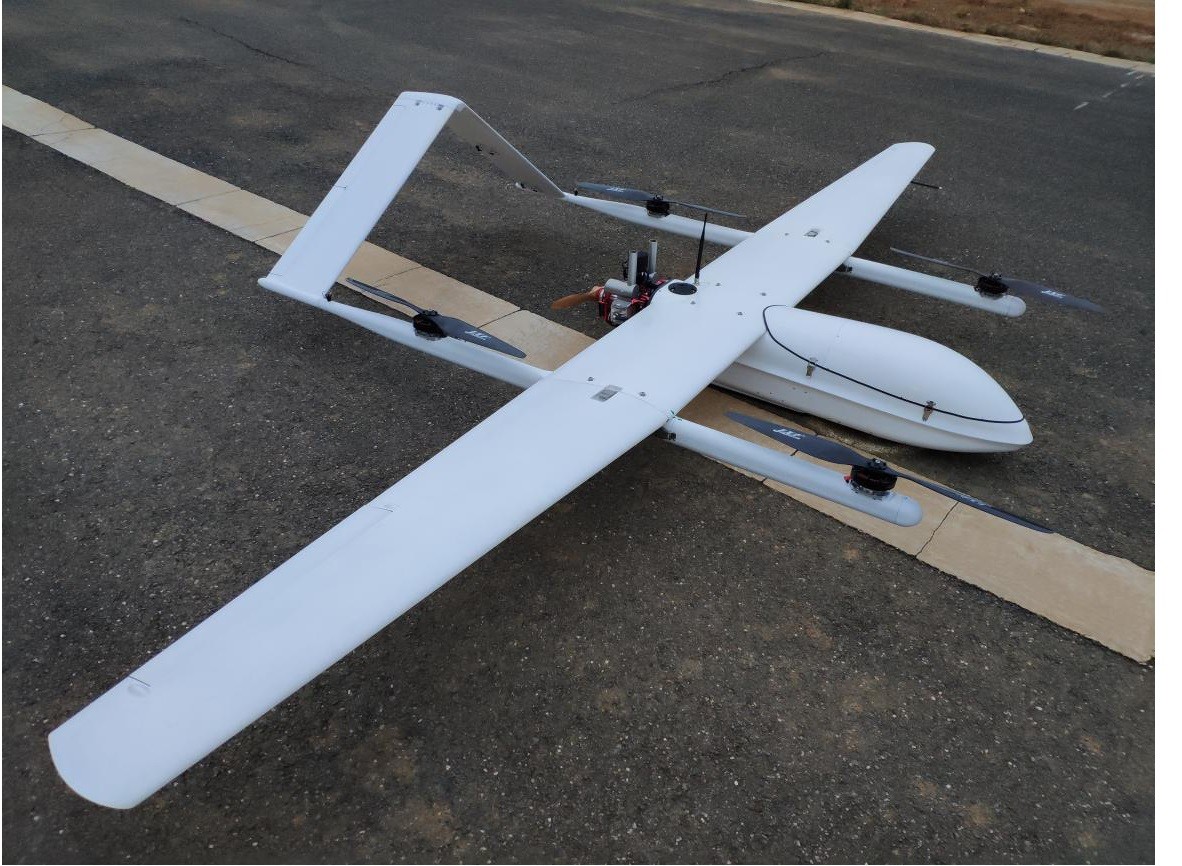

It is a long endurance hybrid unmanned aerial vehicle (UAV) video surveillance system designed for video surveillance application scenarios. It consists of three parts: UAV subsystem, mission payload subsystem, and ground station subsystem. QJ-25D is a rear thrust oil powered vertical takeoff and landing fixed wing unmanned aerial vehicle. In addition to special features such as fully autonomous takeoff and landing, RTK high-precision positioning assistance, and precise navigation, unmanned aerial vehicles are also equipped with high-performance electro-optical pods and wireless video transmission equipment, paired with dedicated ground station subsystems. The QJ-25D connection structure adopts a fast locking device, which can be quickly disassembled and loaded into a 1500x640x630mm aviation box for easy transportation and carrying.
