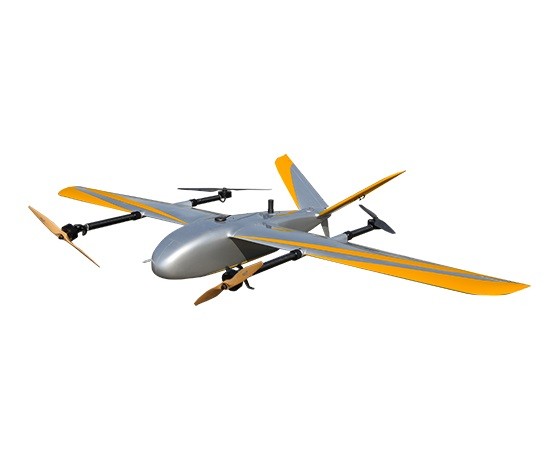

Pure electric fixed wing unmanned aerial vehicle
Adopting a four axis tilt rotor structure with vertical takeoff and landing capability;
Large wing area, capable of carrying multiple payloads to meet flight requirements with different ground resolutions, with ground resolution better than 2cm;
The cabin is spacious, powerful, and has a large load capacity, with higher potential for application.
Body length 1350mm
Wing span 2550mm
Maximum takeoff weight 13.5kg
Data transmission distance 30km
Differential mode RTK/PPK
Modular design, tool free quick disassembly and assembly, mechanical and electrical synchronous connection
Multi purpose payload compartment size for one machine: 280 × 190 × 150mm;
Design of Multi purpose Load Cabin for One Machine
Can change the payload according to task requirements
Carrying case size 1260 × 410 × 330mm
+1335×515×290mm
Standard flight time 120 minutes
Maximum flight time of 150 minutes
Cruise speed 20m/s
Maximum speed 30m/s
Wind resistance capacity 12m/s (level flight)/8m/s (takeoff and landing)
Maximum ceiling 5000m
Vertical takeoff and landing method
Battery 6S 22.8V 25000mAh × 2
Operating temperature -20~45 ℃
