Long endurance heavy load industrial grade unmanned aerial vehicle

Long endurance heavy load industrial grade unmanned aerial vehicle

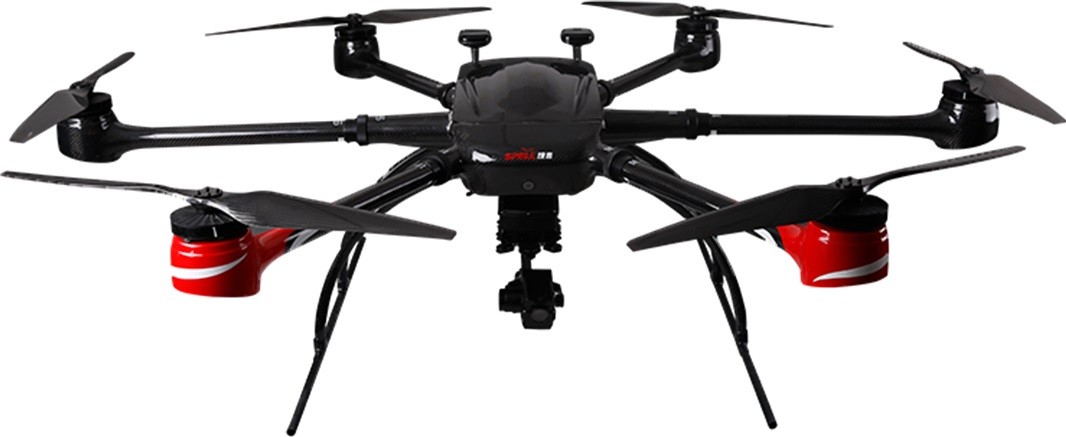

The QJ-X6L-15 hexacopter unmanned aerial vehicle is a standard multi-purpose medium-sized unmanned aerial vehicle that performs aerial photography tasks with a maximum endurance of 75 minutes and a flight distance of over 40KM. It can provide a 30 minute endurance under a 15KG heavy load and a flight distance of up to 20KM.
The QJ-X6L-15 drone is a general-purpose drone capable of performing multifunctional tasks. In addition to basic aerial photography and image transmission, the drone has three mounting points and can perform multiple tasks simultaneously. This model is particularly suitable for aerial surveying and is also suitable for use on ships. It can also meet transportation and delivery applications.
This type of drone has strong adaptability to the environment, and the flight control has been optimized for wind resistance. This model has superior wind resistance and performs well in high-altitude flight.

This model can switch between tethered mode and free flight mode, and is equipped with an arrow tethered ground control unit. It can be instantly converted into a tethered unmanned aerial vehicle system and can provide more than 8 hours of hovering operation time through ground power supply.

Maximum wingspan
2570±10mm
Symmetrical motor wheelbase
1765±10mm
Empty takeoff weight
22.5±0.2kg
Maximum takeoff weight
37.5kg
Task load capacity
≤15kg
Idle hover time
≥ 75min (altitude below 1000m, 25 ℃)
Suspension time of 15kg load
≥ 30 minutes (altitude below 1000m, 25 ℃)
Maximum flight speed
18m/s
Maximum climbing speed
4m/s
Maximum descent speed
3m/s
Relative climbing altitude
4000m (plain)
Maximum working altitude
5000m (altitude, relative climb 1500m)
wind resistance
Level 7 wind
Maximum control distance of remote control
≥7km
Maximum control distance of ground station
≥10km
Dimensions of arm packaging box
1125*470*455±10mm
Dimensions of the body packaging box
1085*690*470±10mm
Empty weight
10.5±0.2kg
