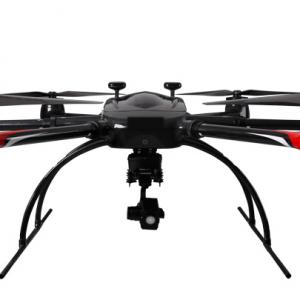

Electric firefighting emergency rescue drone

Electric firefighting emergency rescue drone
With the increasing maturity of drone technology and the further expansion of aerial photography technology, the application fields of drones in China are becoming more and more extensive, including photogrammetry, emergency disaster relief, public safety, resource exploration, environmental monitoring, natural disaster monitoring and evaluation, urban planning and municipal management, forest fire pest and disease prevention and monitoring, etc

Technical advantages: flexible maneuverability, comprehensive field of view, simple operation, safe and reliable

Diagonal wheelbase 1500mm, capable of level flight speed of 15m/s
Rotating diameter 2350mm, climbing speed 10m/s
The aircraft has a height of 600mm and can land at a speed of 5m/s
Aircraft Aluminum Body Material Safety Wind Resistance Level 7
Battery specifications 4x12S/14000mAh IP protection level IP43
Curb weight 40kg, working environment temperature -20 ° -50 ° C
Maximum load of 60kg, average failure interval MTBF of 100, takeoff and landing
Standard load 25kg navigation positioning RTK+dual antenna direction finding
Capable of flying at an altitude of 5000m with positioning accuracy and positioning error ≤ 0.5m
Capable of flying at an altitude of 500m, with manual/augmented/autonomous flight modes
Idle endurance time of 30 minutes, handheld ground station for operating equipment
Full load endurance time of 20 minutes, remote control distance of 2km
Image link distance 5km Data link distance 5km
