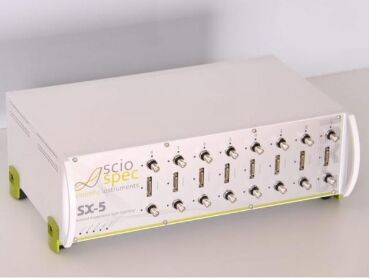

Impedance analyzer
Parameter characteristics
·Multi channel impedance analyzer with up to 16 channels in one chassis
·Inter channel synchronization enables true parallel operations
·Powerful signal processing backend enables fast measurement even with all channels enabled
·Mid frequency front-end 100 mHz 10 MHz, Ohms Tom
·Frequency can be extended to 40 MHz or even 100 MHz
·High resolution (up to 2048 points per scan)
·The basic accuracy is 0.01%
·+/-1 V DC bias
·Setting functions
·Multi channel setup, each channel has different parameters
·Synchronous or asynchronous measurement
·Multiple analysis ports with a single excitation source
·Nonlinear impedance spectrum
·Ultra fast hardware synchronization achieved through synchronous input/output ports
·Expansion ports for specific application frontends
·Easy connection via high-speed USB or Ethernet
·PC based control and data analysis (including Sciospec software suite)
·Sciospec COM interface, used for complete instrument control from Java, C, Python, LabView, Matlab, etc.
