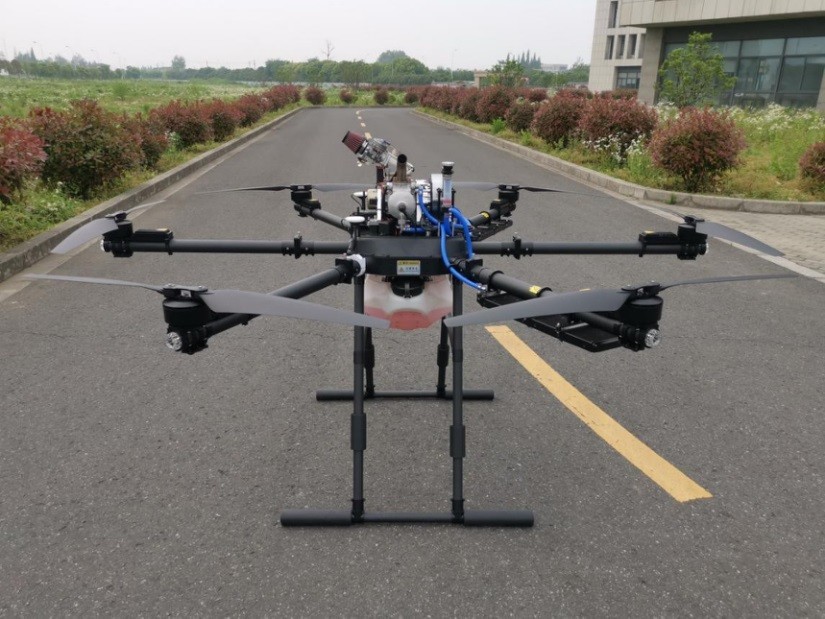

Six axis oil to electric multi rotor unmanned aerial vehicle
This QJ-2200 hybrid unmanned plant protection aircraft adopts advanced gasoline engine with generator integrated power supply technology, combining the advantages of oil and electric power. Oil powered power generation retains fuel
High energy. Electric drive rotor retains the characteristics of flexible and stable control through electric drive. The maximum flight time with no load and full fuel can reach 100 minutes, and the ultra long flight time effectively ensures operational efficiency.
Symmetrical motor wheelbase 2220mm
Dimensions 2220mm x2220mm x 1300mm (arm unfolded) 1180mm x1180mm x 1300mm (arm folded)
Motor KV value 100rpm/V
Size 100 * 45mm
Electric adjustable continuous current of 180A (with good heat dissipation conditions) supports lithium battery for 18S
Blade specification diameter * pitch 42 * 12.3 inches
Single weight 150g motor, electrically adjustable, paddle holder
Motor, electrically adjustable, propeller seat 1970g
The aircraft weighs 65kg (including avionics) and comes with a standard fuel tank with a full load of 16L (12kg)
Maximum takeoff weight 130kg
Maximum load of 50kg (16L oil) Maximum ascent speed: 8m/s
Maximum descent speed 4m/s
Positioning mode 5m/s
Maximum horizontal flight speed motion mode: 11m/s
Cruise mode: 10m/s
Attitude mode: 15m/s
Maximum pitch angle 25 °
Maximum rotational angular velocity pitch axis: 120 °/s, heading axis: 120 °/s, maximum flight altitude: 5000m
Maximum allowable wind speed 10m/s
Maximum flight time of 100 minutes (16L oil load 50kg) Working environment temperature: -30 ℃ to+65 ℃
Hovering accuracy vertical: ± 0.5 m; horizontal: ± 1.5 m (when GPS positioning is working normally)
