Arbitrary waveform generator

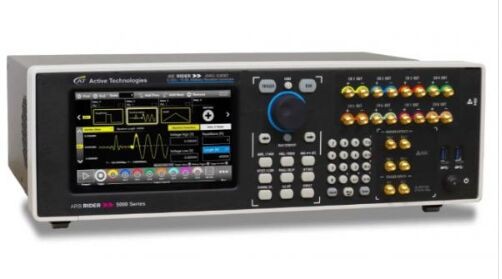

16 bit arbitrary waveform generator: 6.16 GS/s real-time update rate (12.32 GS/s in RF mode) and 16 bit vertical resolution. The Arm Rider AWG-5000 is available in 2, 4, or 8 channel models and is the fastest AFG (Arbitrary Function Generator) on ShiJie, with Zui up to 2 GHz sine waves. Thanks to its simple Knight software, AWG-5000 offers streaming performance and a very user-friendly interface.
With a bandwidth of 2 GHz, an output range of up to 5Vpp, and a storage depth of up to 4 Gsamples, the multi-channel high-performance arbitrary waveform generator AWG-5000 is an ideal choice for physical experiments, quantum computers, aerospace, and defense applications.
Multi channel high-performance arbitrary waveform generator AWG can generate signals up to 6 GHz due to its integrated up conversion function (RF mode)
Does not affect simulation performance: can achieve a fast rise time of 110ps when Zui reaches a large amplitude of 5Vpp
Up to 32 digital channel options, combined with 2, 4, or 8 analog channels, make the multi-channel high-performance arbitrary waveform generator AWG-5000 a fully functional mixing signal generator. Up to 8 analog signals can now be generated, fully synchronized with 32 digital lines (LVTTL or LVDS standard)
